Pre-requisites
Make sure you have logged into the application as a Global Administrator with appropriate privileges. You must also be the Owner for the subscription that you want to onboard.
Create a New Account in Saner Cloud

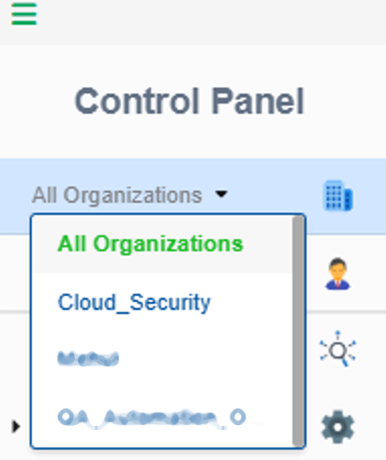

Step1: In the Control Panel, open the All Organizations drop-down menu and select the organization for which you want to create the new account.
Step2: To create a new account, click the New Account button on the top-right of the page.

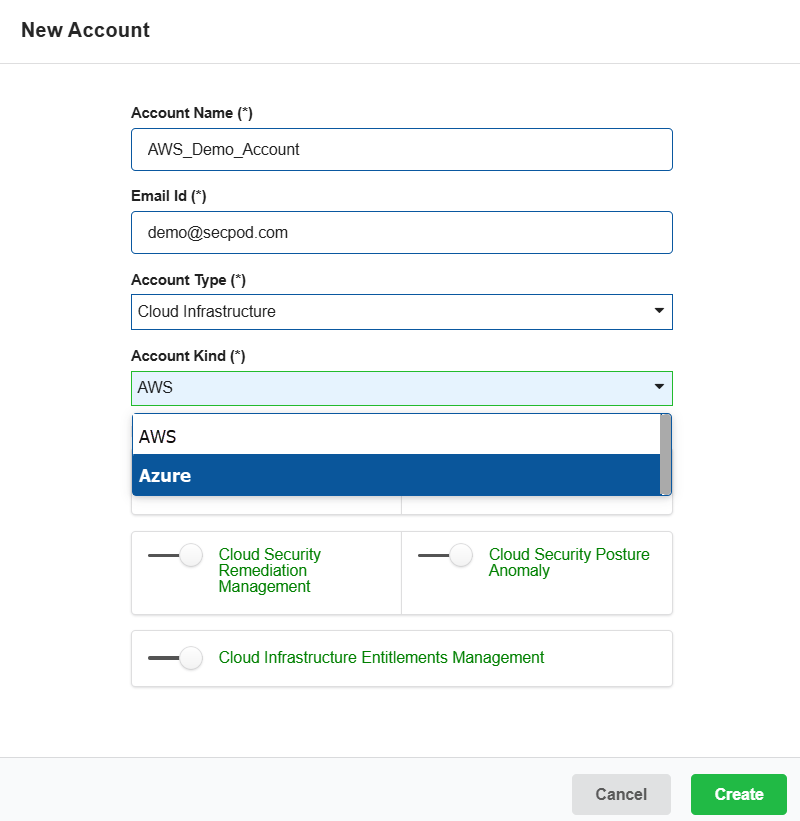

Step3: Complete all the details required to create the New Account.
- Provide the name of the cloud account
- Key in a valid email address
- Choose the account type “Cloud infrastructure” from the drop-down list
- Choose the cloud provider as “Azure” from the drop-down list
- Turn on the slider to provision the relevant tool for the account
Step4: Click the Create button.

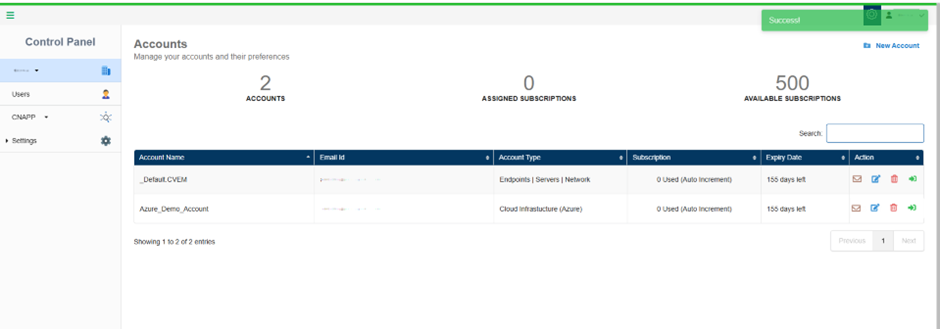

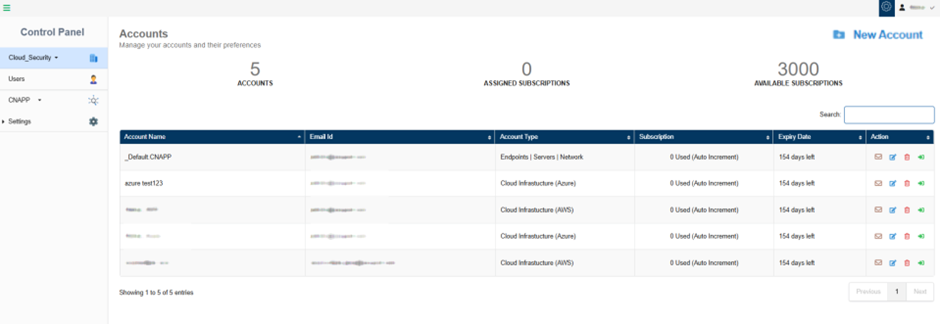

The newly created account displays in the Accounts page within a tabular format with the following details:
- Account Name
- Email ID
- Account Type
- Subscription
- Expiry Date
- Action
In the Action column, you have the facility to set up the mail settings for the corresponding account, edit the current account details, delete the account, and redirect to the dashboard view of this account.
Download the “.py” OR “.sh” file

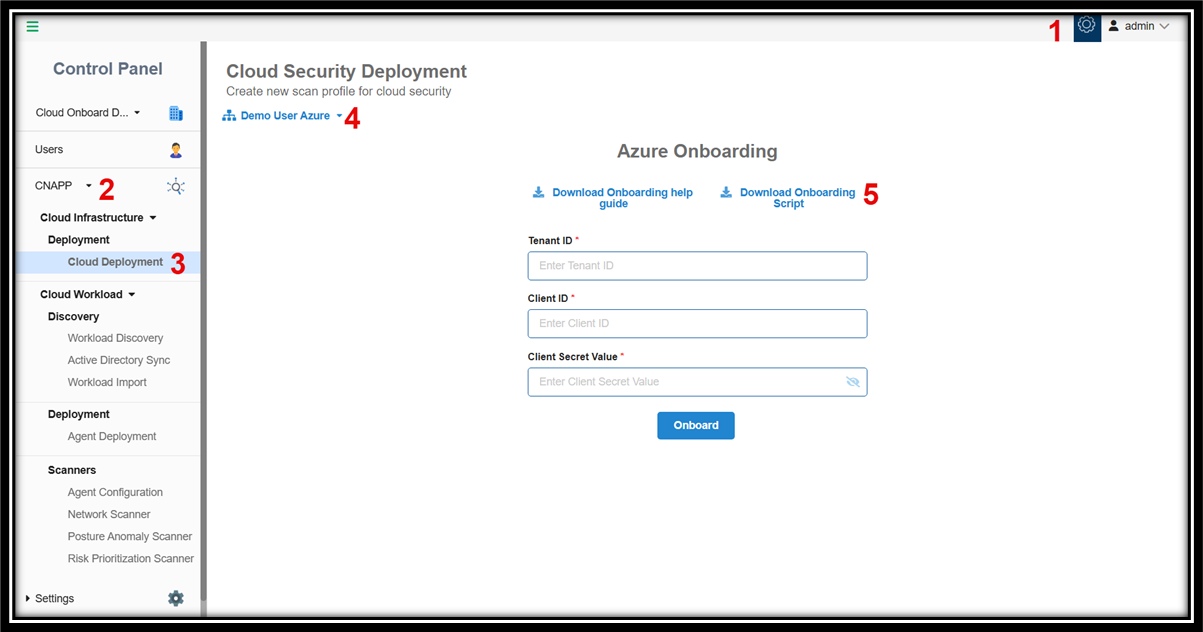

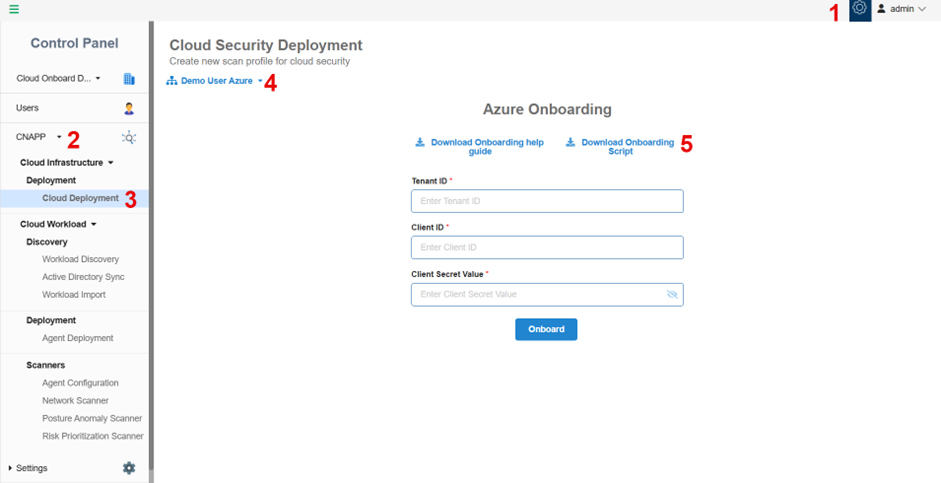

Just make sure to have logged into the application with administrator privileges. You can download the .py or .sh files from the Azure Onboarding page in Saner Cloud Security Deployment.

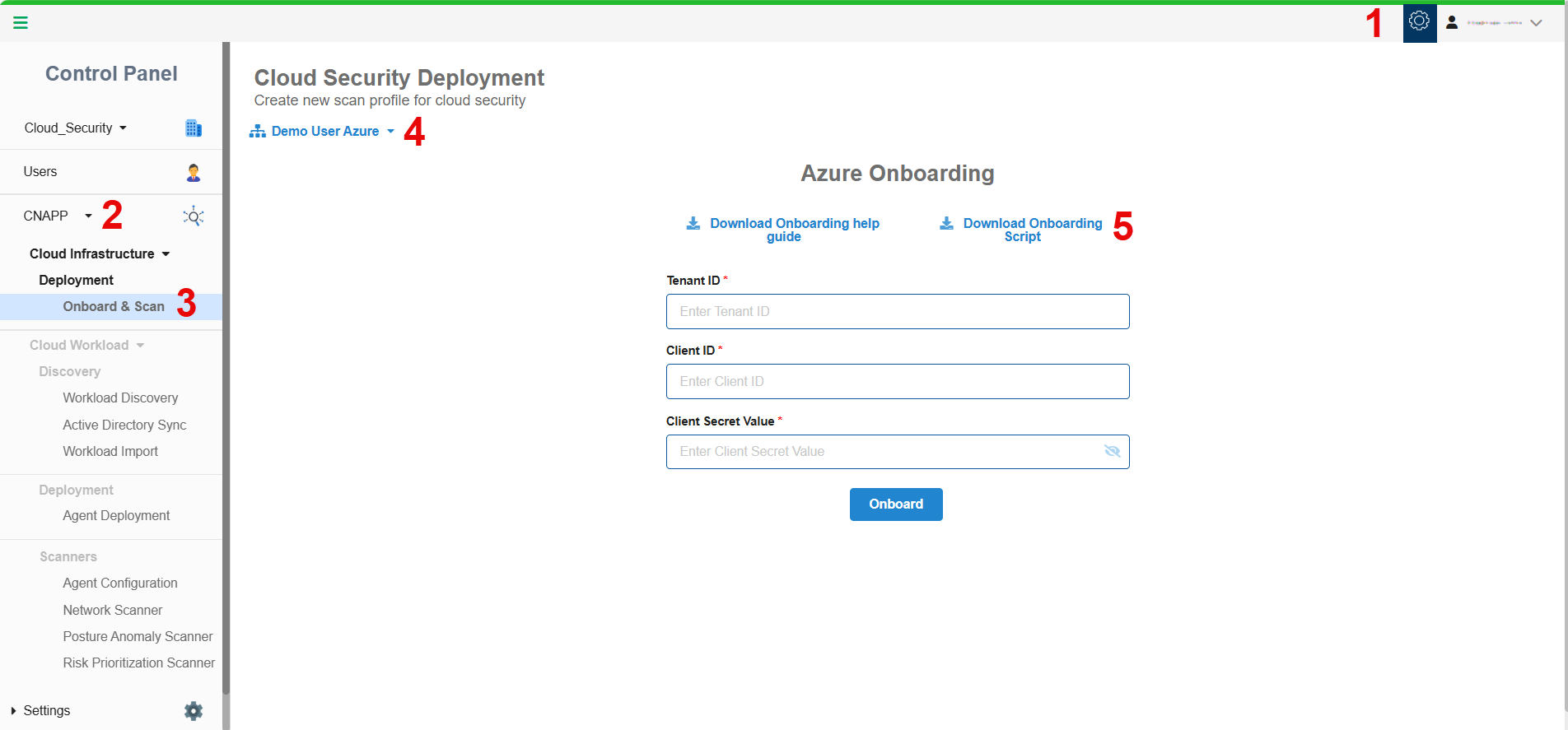

- Access the Control Panel and choose the relevant organization.
- Click on the CNAPP menu from the sidebar.
- Choose Cloud Deployment under Cloud Infrastructure Deployment.

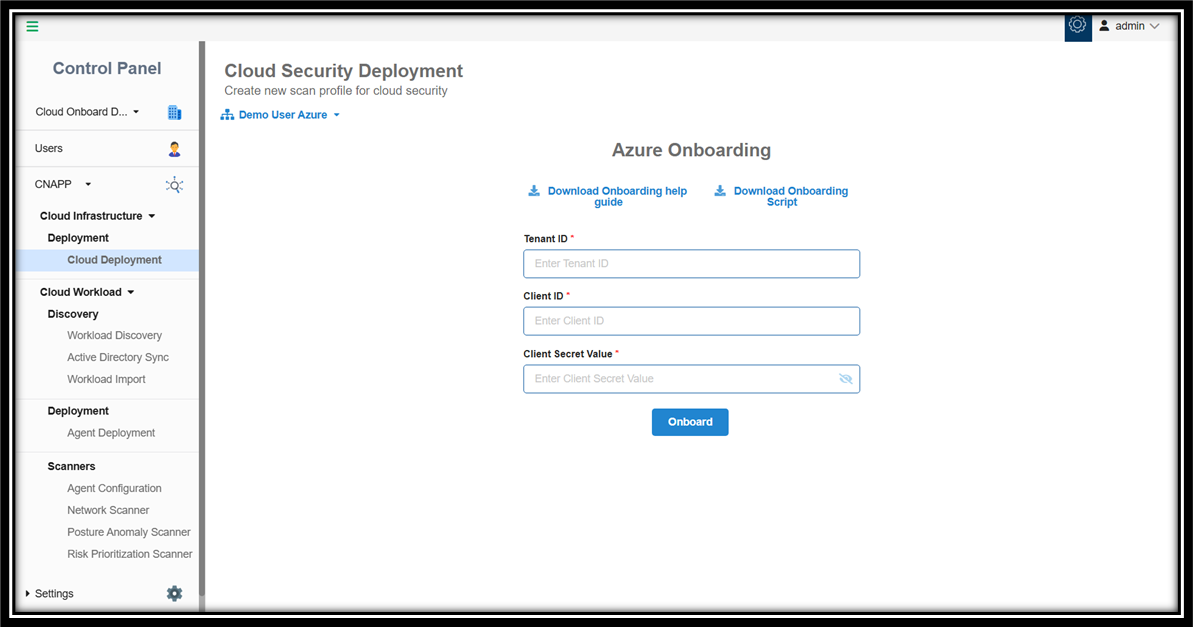

- Choose the Account Name that you want to onboard. The Azure Onboarding page opens.
- Click the link “Download Onboarding Script” and click the script you choose to download.
Make sure you extract the script files from the compressed (.zip) folder.
Access Cloud Shell
Step 1: Go to the Azure portal: https://portal.azure.com.

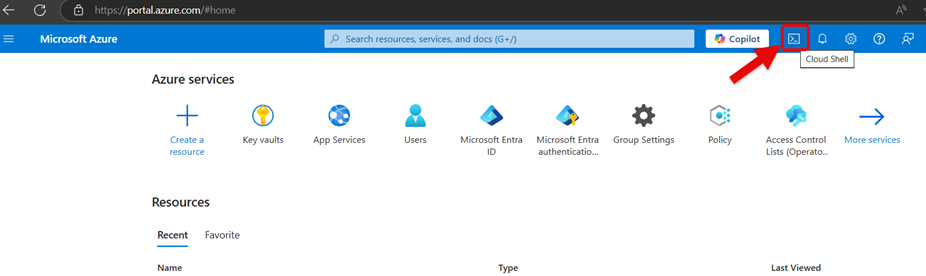

Step 2: Click the Cloud Shell icon (top-right corner in the portal’s menu bar).
Fetch the Subscription ID

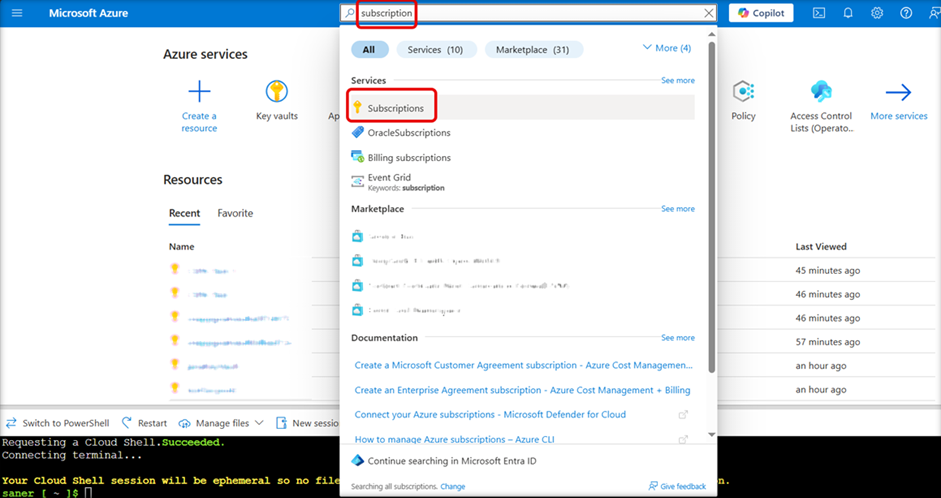

Step 1: In the Azure portal search bar, type “subscription”.
Step 2: Click on Subscriptions from the search results.
Copy the Subscription ID to Use in Script Execution

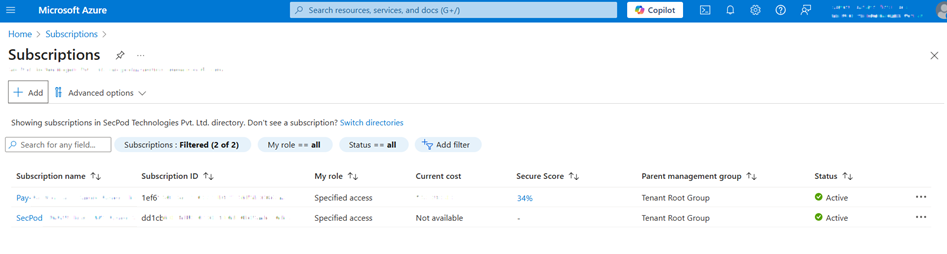

Step 1: You’ll see a list of subscriptions associated with your Azure account.
Step 2: Identify the relevant Subscription ID.
Copy the Subscription ID and pass it as an input parameter when executing your custom script.
Download Policy Files(.json) and Upload Scripts(“.sh” or “.py”) to Azure CLI
Pre-requisite: Make sure you have the appropriate permissions(preferably, global administrator) to execute the bash script.

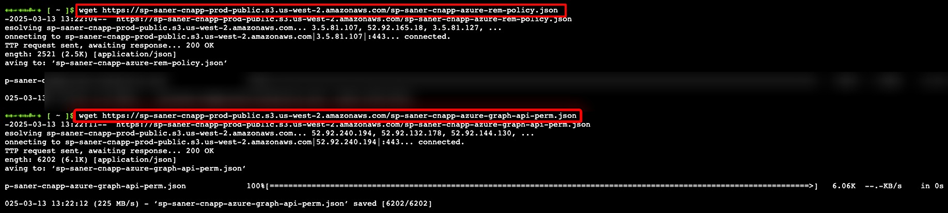

Use “wget” Command to Download the JSON Policy Files
Its mandatory that you execute both the commands in Azure CLI in-order to download the JSON policy files:
wget https://sp-saner-cnapp-prod-public.s3.us-west-2.amazonaws.com/sp-saner-cnapp-azure-rem-policy.json
Upload Script to Azure CLI
- sp-saner-cnapp-azure-onboarding.py
OR - sp-saner-cnapp-azure-onboarding.sh
Step1: Open Azure CLI.

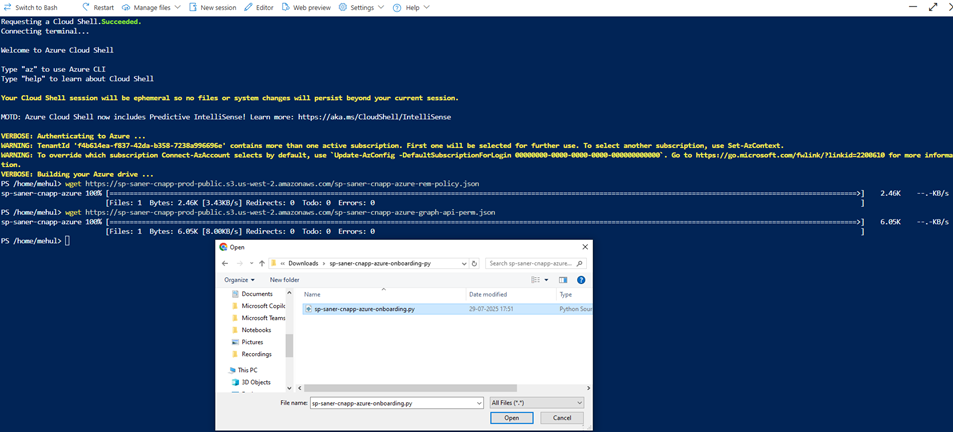

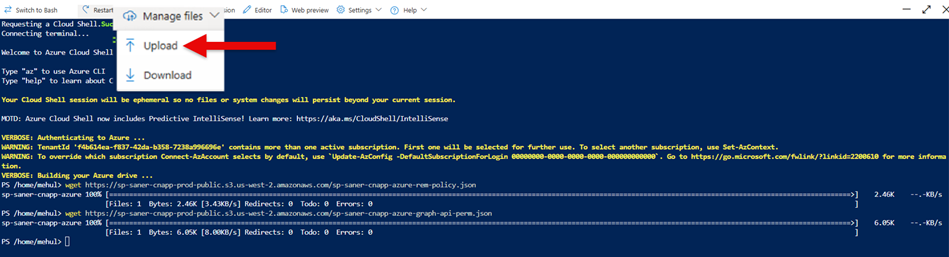

Step2: Click Manage files from the Azure CLI menu bar and select “Upload”.
Step3: Next, browse and select the .py OR .sh script that you want to upload.

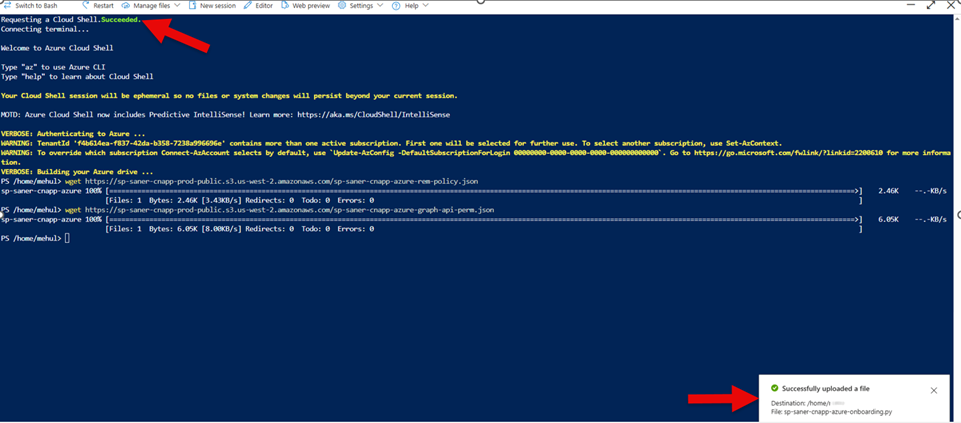

Step4: Check for the file upload message as shown in the screenshot.
Execute “.sh” OR “.py” Scripts
After transferring the JSON files and script(.py or .sh) into Azure CLI, you can start with script execution with help of examples provided below.
You can either execute the “.sh” OR “.py” script as per your preference.
[Example] Execute “.sh” Script
The following steps are described using “.sh” as an example.
Step 1[Provide Permission]: Type the following command into the Azure CLI session.
chmod +x sp-saner-cnapp-azure-onboarding.sh

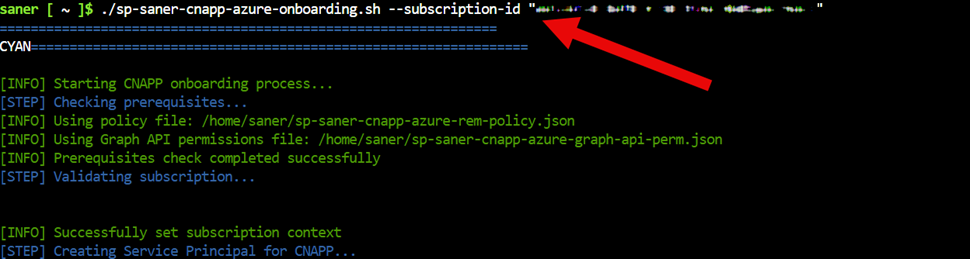

Step2: Type the next command and key in your subscription id into the highlighted portion(boldface) and hit the enter key:
./sp-saner-cnapp-azure-onboarding.sh –subscription-id “xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx”

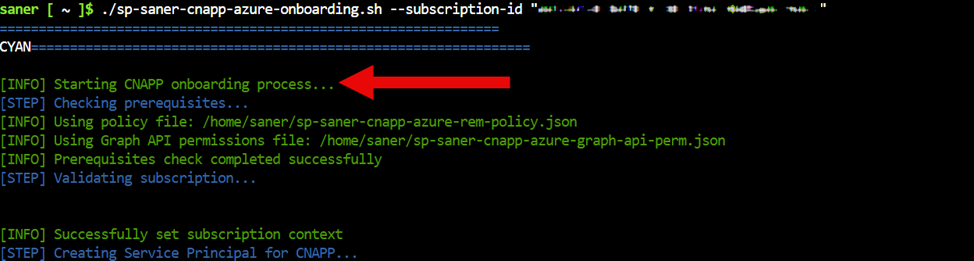

Step3: Observe the script in processing state.

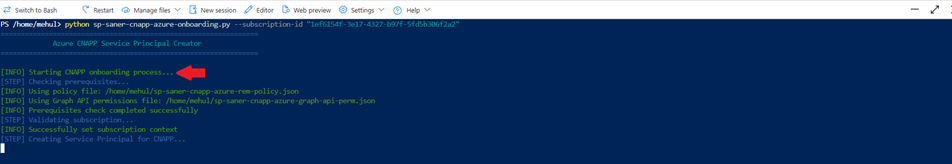

[Example] Execute “.py” Script
The following steps are described using “.py” as an example.
Step 1: Type the following command and key in your subscription id into the highlighted portion(boldface) and press the enter key:

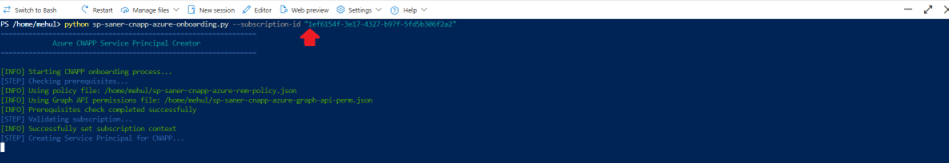

python sp-saner-cnapp-azure-onboarding.py –subscription-id “xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx”
Step2: Observe the script in processing state.
Get Onboarding Details After Script Execution Completes
Once the script execution completes, the output provides the information needed for Azure onboarding in Saner Cloud.
Recommendation: Record the values of the output as you need to provide these values as input when you complete the onboarding for your account subscription in Saner Cloud.

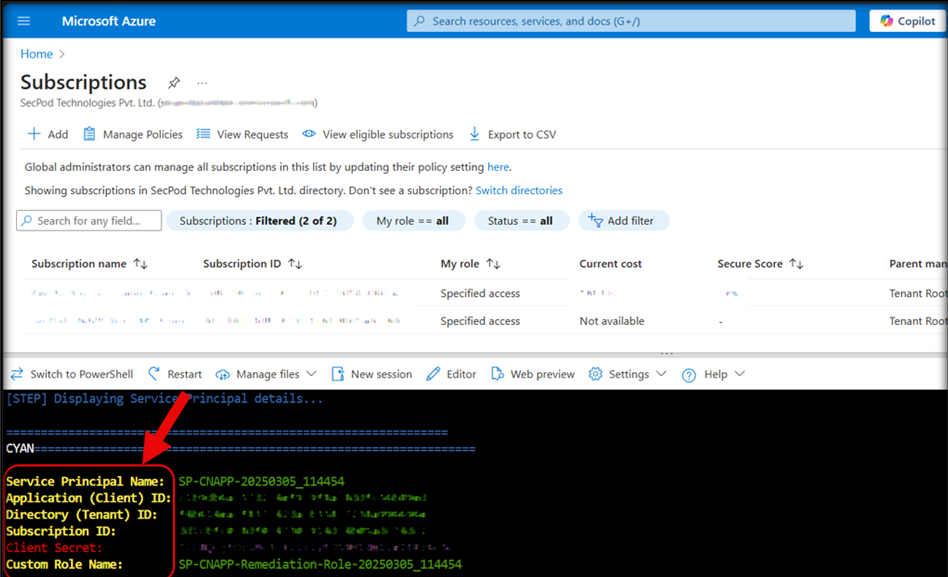

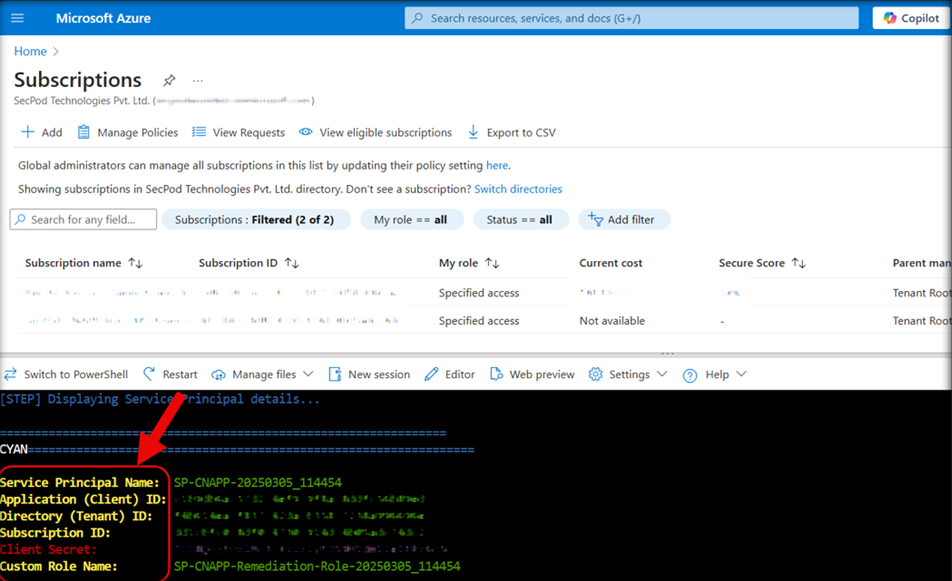

The output displays the following details:
- Service Principal Name
- Application (Client ID)
- Directory (Tenant ID)
- Client Secret (Secret Key)
- Custom Role Name
IMPORTANT: The Client Secret (Secret Key) is generated only once. Make sure to secure this key to retrieve when needed.

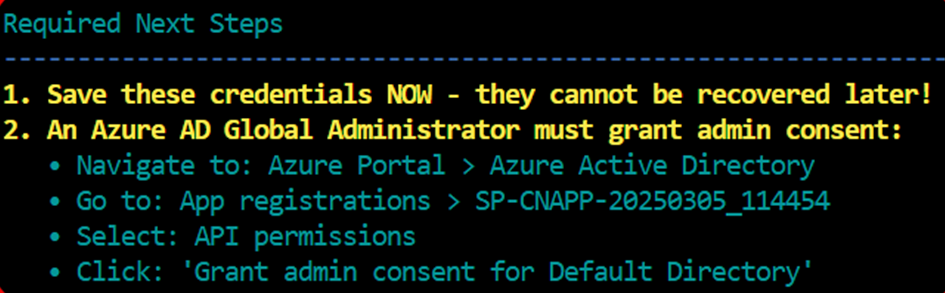

Carry out the next few required steps, and finally, copy the required values to enter them into the Saner Cloud Azure Onboarding Page.
Carryout the Next Few Required Steps

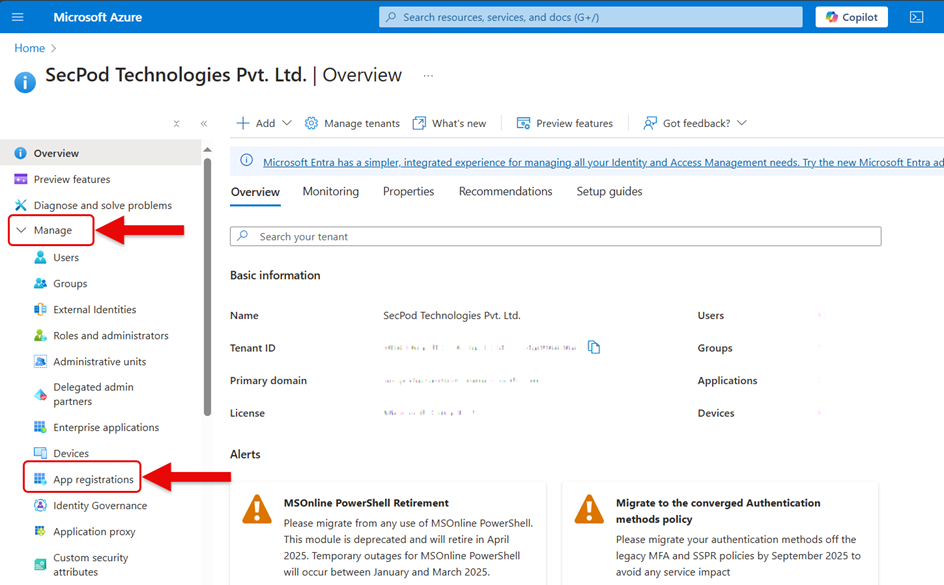

Navigate to Azure Portal > Microsoft Entra ID

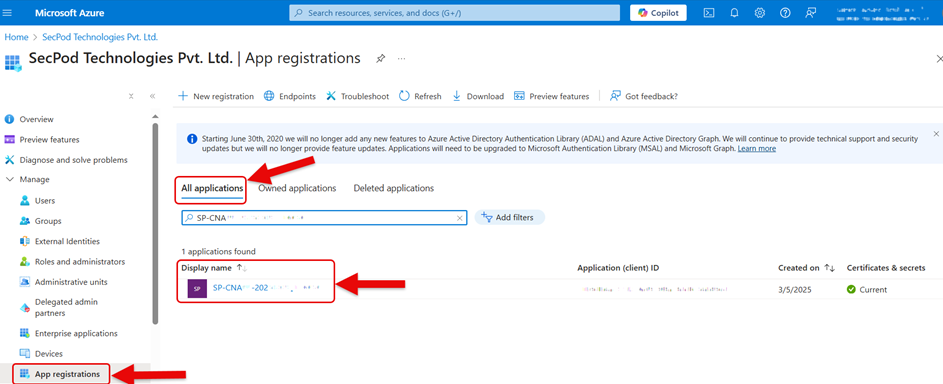

Access All Registrations and Search by the Service Principal Name
You can copy the service principal name from the executed script and paste in the search box under All applications.

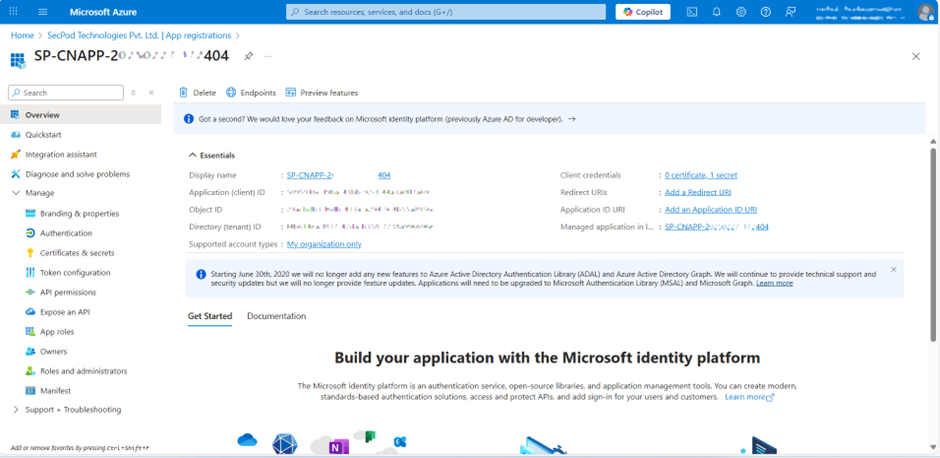

Once the search results are retrieved, click the link under Display name column to open the API permissions.

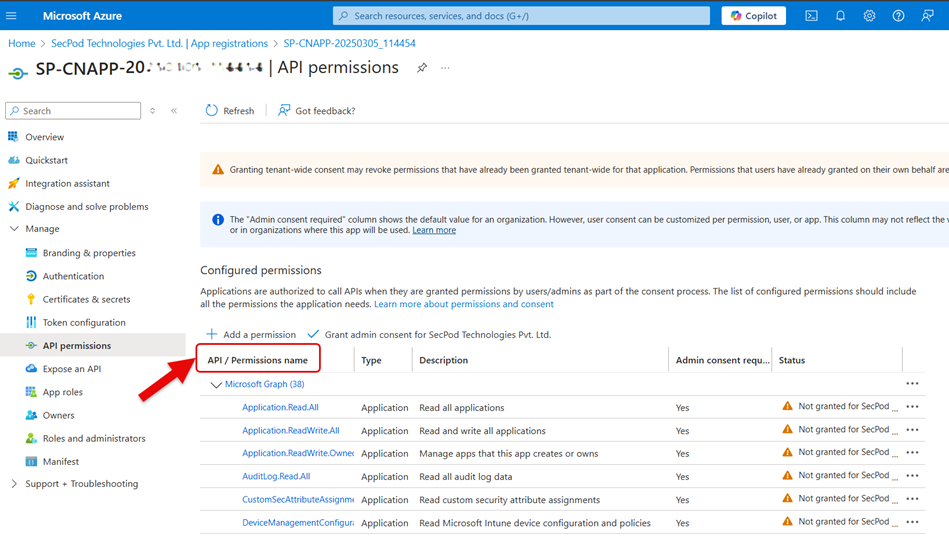

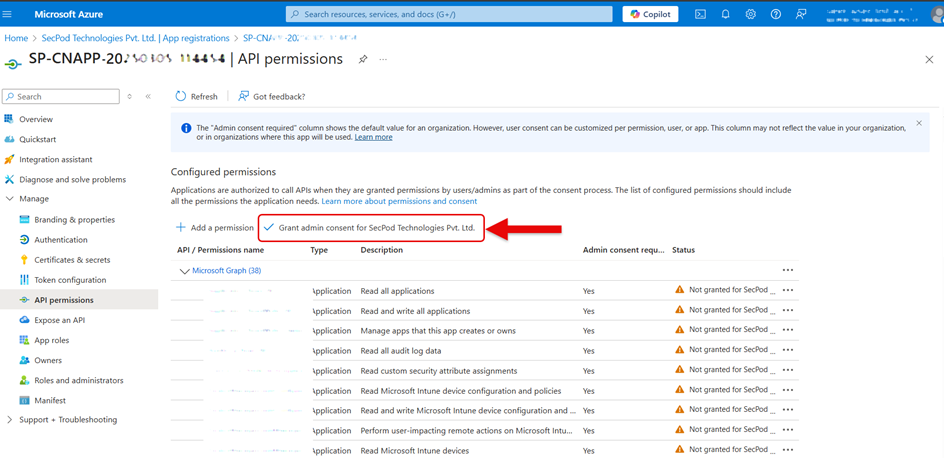

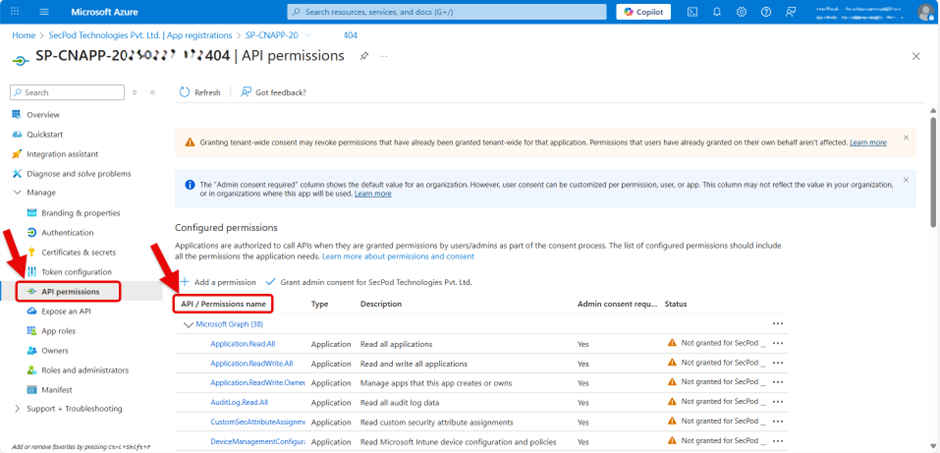

Select API permissions

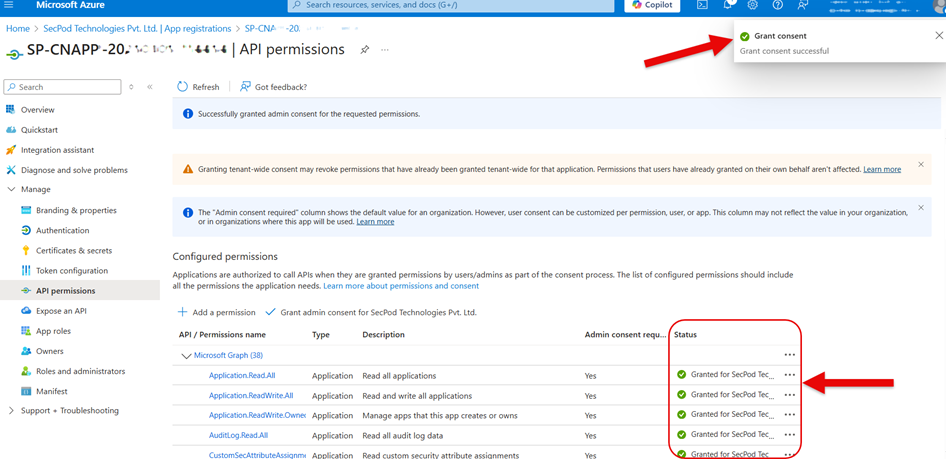

Grant Admin Consent for Default Directory

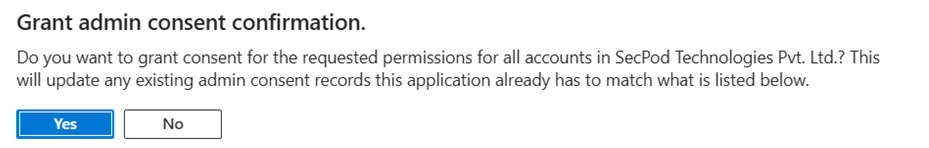

Click Yes and proceed with your consent.
Complete the Onboarding for Your Cloud Account Subscription

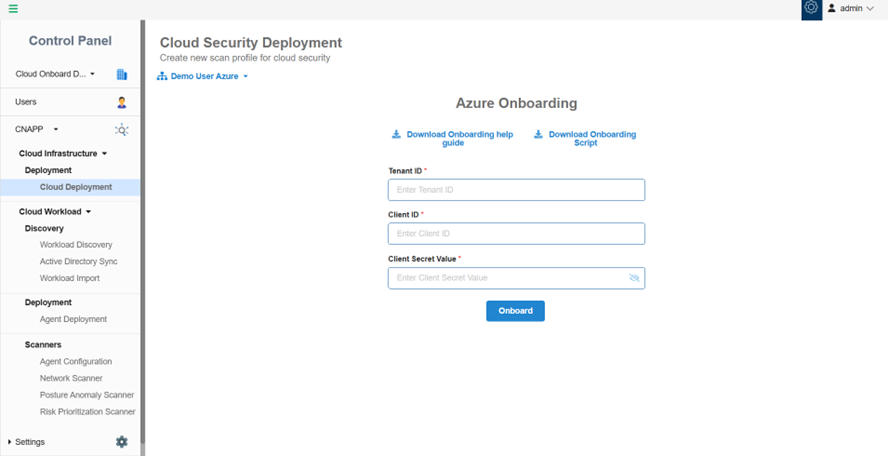

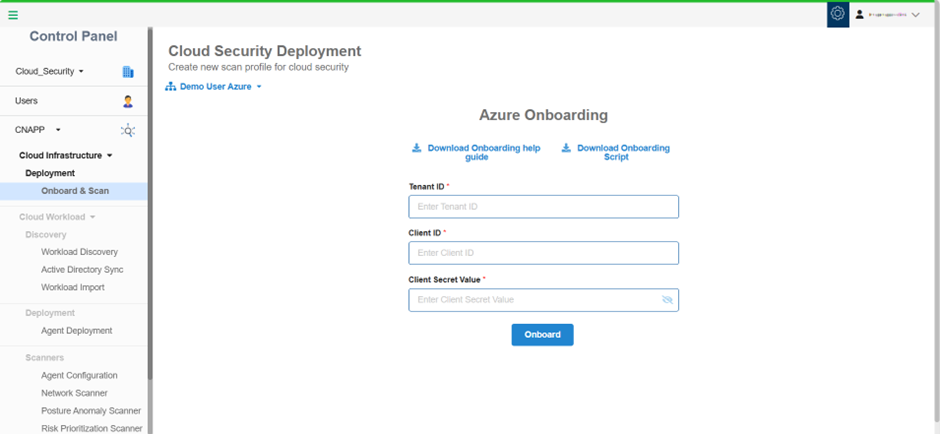

Step 1: Open the account for which you want to onboard the subscription and feed in the values obtained from the script execution.
- Tenant ID(Directory(Tenant)ID)
- Client ID(Application(Client) ID)
- Client Secret Value(Client Secret)

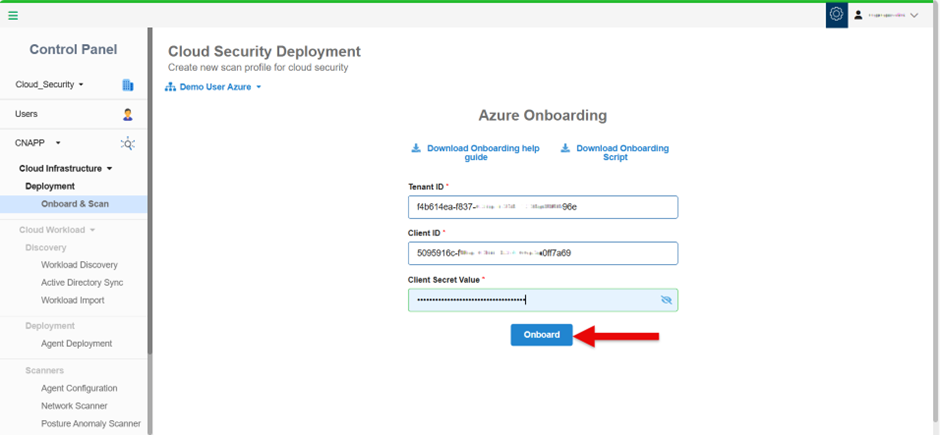

Step2: Click Onboard. Now you’re ready to initiate the scanning process.
